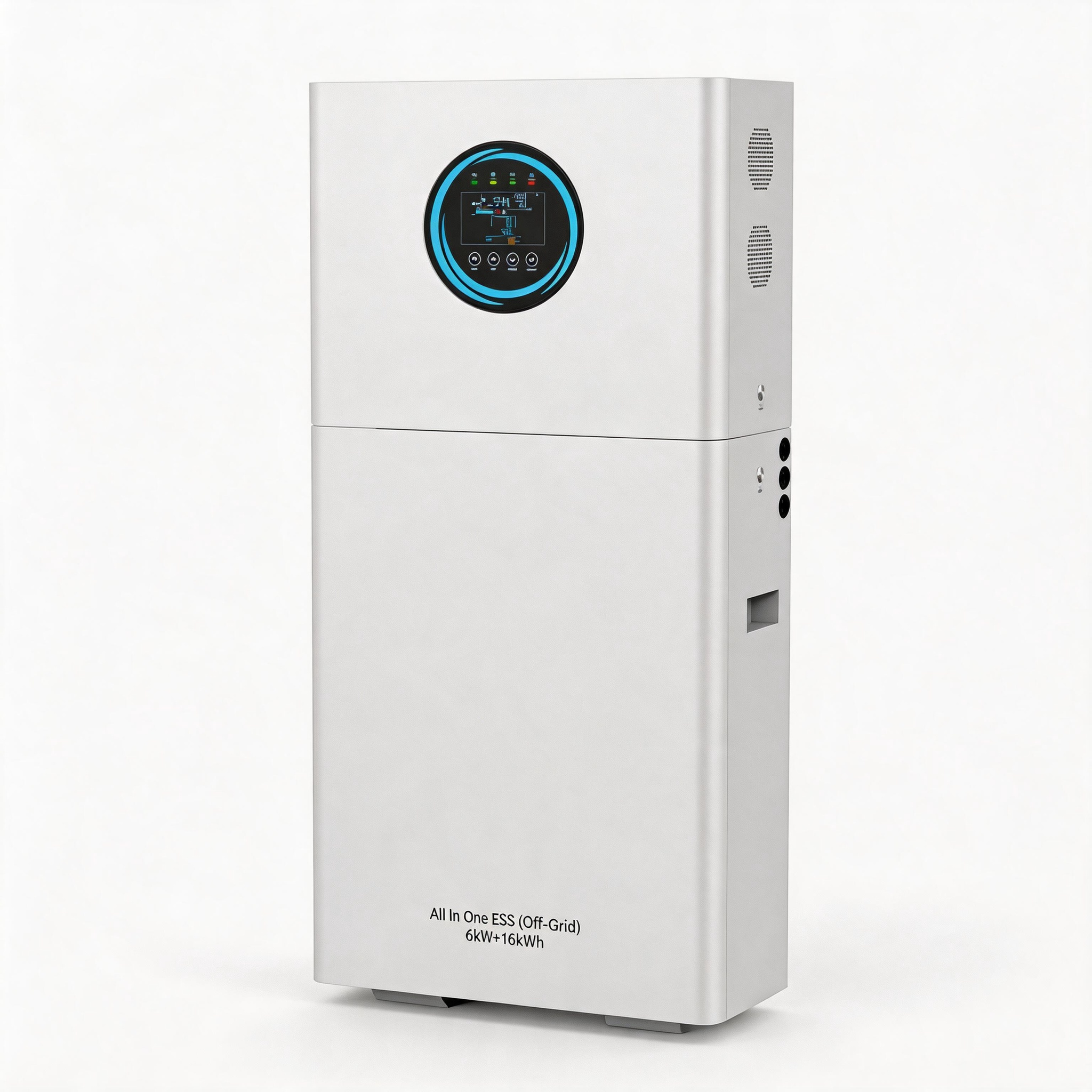

ESS 6KW+10KWH ESS 6KW+16KWH
ESS 6KW+10KWH ESS 6KW+16KWH
ALL-IN-ONE INVERTER & BATTERY SYSTEM
Support Lithium/Lead-acid Battery
MAX.PV 9KW
Pure Sine Wave
Built-in Solar Charger
Support Parallel
Lithium Battery Activation
Wide MPPT Range 80-450V
WiFi Monitoring
MAX.PV 9KW
Pure Sine Wave
Built-in Solar Charger
Support Parallel
Lithium Battery Activation
Wide MPPT Range 80-450V
WiFi Monitoring
Quantity
-
Detail
Item ESS 6KW+10KWH ESS 6KW+16KWH AC Input Rated Input Voltage (VAC) 208 / 220 / 230 / 240; L + N + PE Voltage Range (VAC) 90~280±3 (normal mode); 170~280±3 (UPS mode) Frequency (Hz) 50 / 60 (Auto Adaptive) AC Output Rated Capacity (kW) 6 Voltage (VAC) 208 / 220 / 230 / 240 Power Factor (PF) 1 Frequency 50/60Hz±0.1% Switch Time (ms) 10 Wave Form Pure Sine Wave Overload Capacity (Battery Mode) 60s@102%~110%; 10s@110%~130%; 3s@130%~150%; 0.2s@>150%; Max. Efficiency (Battery Mode) 93%@48VDC Charger (PV / AC) Solar Charger Type MPPT Max PV input current / power 27A/9000W Operating Voltage Range (VDC) 80-450 Max PV Open Circuit Voltage (VDC) 500 Max PV Charge Current (A) 120 Max AC Charge Current (A) 120 Max. Charge Current (PV + AC) (A) 120 Battery Nominal Battery Voltage 51.2VDC 51.2VDC Rated Energy 10KWh(0.5C, 25℃) 16KWh(0.5C, 25℃) Usable Energy (90% DOD) 9KWh 14.4KWh Max.Charge/Discharge Current 150A/150A 150A/150A Operation Voltage Range 40.0Vdc ~ 58.4Vdc 40.0Vdc ~ 58.4Vdc Operation Temperature -10℃ ~ +50℃ -10℃ ~ +50℃ Interface Display LCD Communication USB Monitoring WiFi General Data Ingress Protection IP20 Operating Temperature -10 ℃ ~ 50 ℃ Relative Humidity 5% ~ 95% (Non-condensing) Storage Temperature -15 ℃ ~ 60 ℃ Max. Operating Altitude 4000m (Derating above 1000m) DIMENSION L×W×H (Products size, mm) 460x245x1100mm 550x245x1180mm L×W×H (package size, mm) 1180x540x420mm 630x420x1264mm Net Weight (NW Kg) 118kg 147kg Gross Weight (GW Kg) 135kg 168kg -
