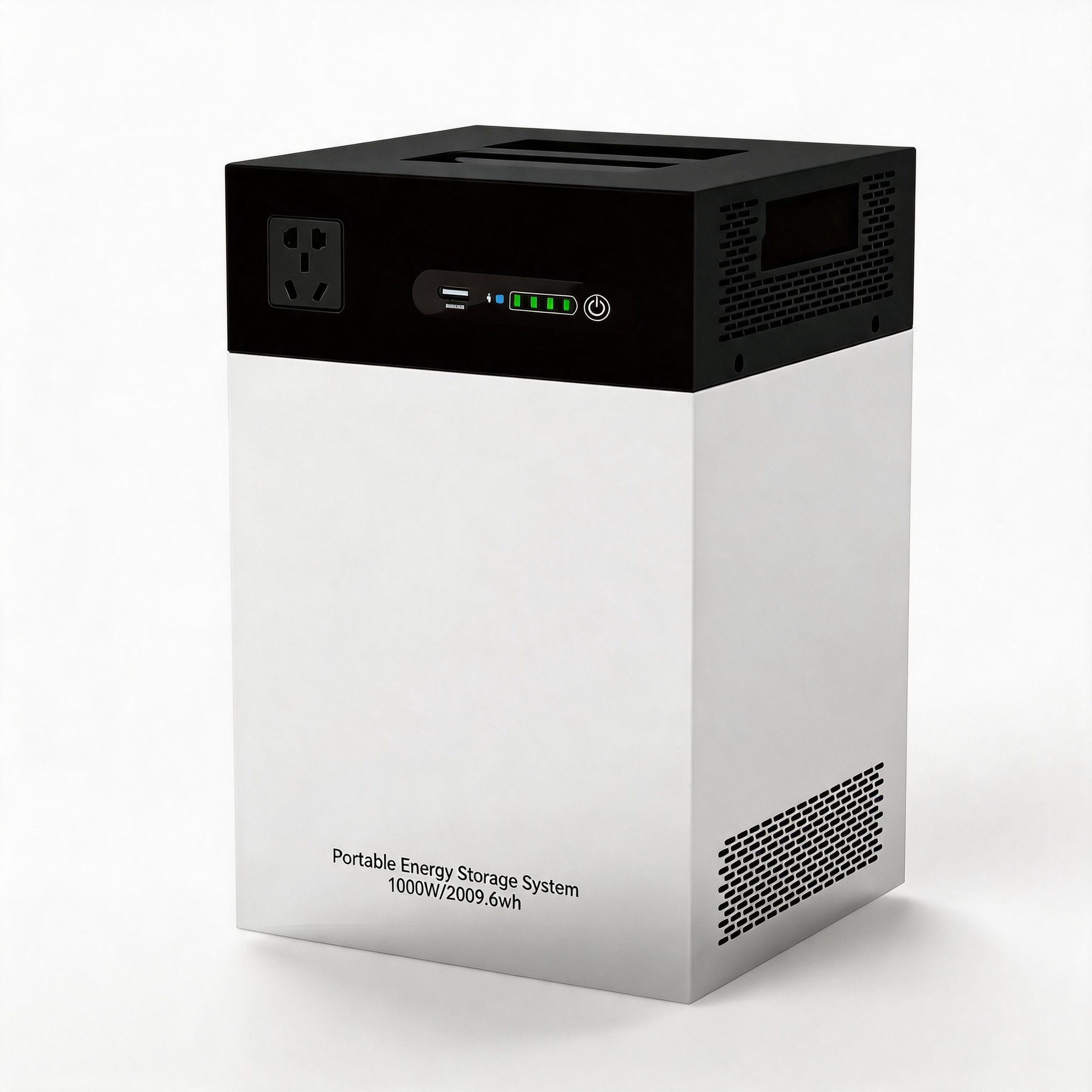

Home / ESS 1000W+2009WH

ESS 1000W+2009WH

PORTABLE AII-IN-ONE ESS SERIES
Integrated design of inverter and BMS Support solar chrging Wide MPPT Range 10-55V CYcles can reach 8000 times AII around protection
Supports USB output & phone charging
$99999
Quantity
  • Detail
    Item Specification
    Model ESS 1000W+2009wh
    Inverter / Charger
    Rated AC Output Power 1000W
    Output Voltage Waveform Pure Sine Wave
    Output Voltage 185 ~ 230VAC 50Hz
    Low DC Warning Point ≤19%
    Low DC Cut-off Voltage 5.8Vdc
    Low DC Warning Return Voltage >20%
    Charging Power (Utility and solar together) 800W Max.
    Bulk Charging Voltage 7.2Vdc
    Float Charging Voltage 7.0Vdc
    AC Input
    Nominal Input Voltage 230Vac
    Low Loss Voltage 90Vac±7
    Low Loss Return Voltage 100Vac±7
    High Loss Voltage 280Vac±7
    High Loss Return Voltage 270Vac±7
    Max. AC Input Voltage 300Vac
    Nominal Input Frequency 45 ~ 65Hz
    AC Charging Power 800W Max.
    Solar Input
    Nominal PV Voltage 38Vdc
    PV Array MPPT Voltage Range 13Vdc~55Vdc
    Max. PV Array Open Circuit Voltage 56Vdc
    Solar Charging Power 550W Max.
    Lithium Iron Battery
    Capacity 2009.6Wh
    Nominal Battery Voltage 6.4Vdc
    Typical Capacity 314Ah
    Max. Charge Current 220A
    Max. Discharge Current 220A
    Operation Voltage Range 5.8Vdc ~ 7.2Vdc
    Operation Temperature -10℃~+50℃
    DC Output
    DC Output Power 5W Max.
    DC Output Socket 1pcs 5V1A USB charger
    Display Function
    LED Indicator 4pcs SOC indicators, 1 pcs working status indicators
    Protection Overcharge protection, Overdischarge protection, Overcurrent protection, Shortcircuit protection, Overtemperature protection*
    Ambient
    Noise (dB) <40dB(1meter)
    Working Temperature -10℃~+50℃
    Humidity 5~95%(no condensation)
    Sea Level (m) ≤2000
    Dimension
    L×W×H (product size) 240x225x360mm
    L×W×H (package size) 286x271x416mm
    Net Weight (NW Kg) 20.9Kg
    Gross Weight (GW Kg) 22.7Kg
